Anti Static Sheet
General Features

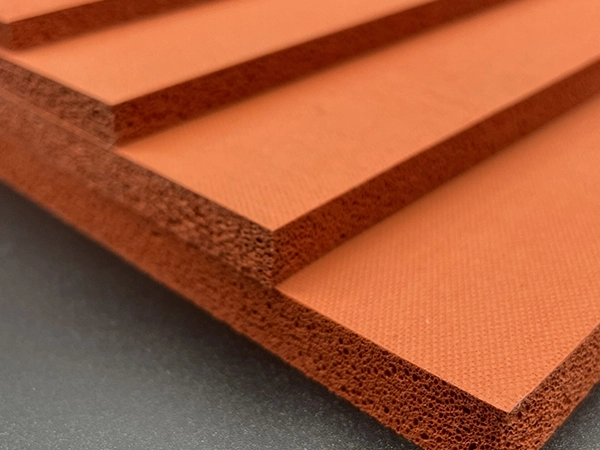

V-0 Silicone sponge sheet is a closed cell, lightweight silicone sponge that is specially designed with low smoke, low toxicity compliance, flame resistance to UL94 V-0 (International Flame Resistance Standard), and low compression set allowing for excellent sealing properties for use in silicone EV batteries Seals and Railway applications.- Extreme Temperature Resistance: -60°C to +230°C Low Compression
- Excellent Sealing Capability: IP67
- Closed Cell Sponge: Prevents water, dust and moisture ingress.
- Available size: Length : 10 mtr, Width : 1.2 mtr, Thickness : 1.5 mm - 8 mm
Description
No Reviews
Description
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| PROPERTIES | STANDARD | TESTING STANDARDS |
| HARDNESS | 60 H | IS 3400 PART II |
| DENSITY (GM/CM3) | 1.28(+/-0.03) | ASTM-D-1817 |
| TENSILE STRENGTH (KG/CM2) | 7-7.5 N/mm^2 | ASTM-D-412 |
| TEAR STRENGTH DIE TYPE-C) | 20-21 kN/m | ASTM-D-642 |
| ELONGATION (%) | 280-300% | ASTM-F150 |
| SURFACE RESISTIVITY | ~106–109 Ω/sq | INTERNAL METHOD |
