Product code: N/A

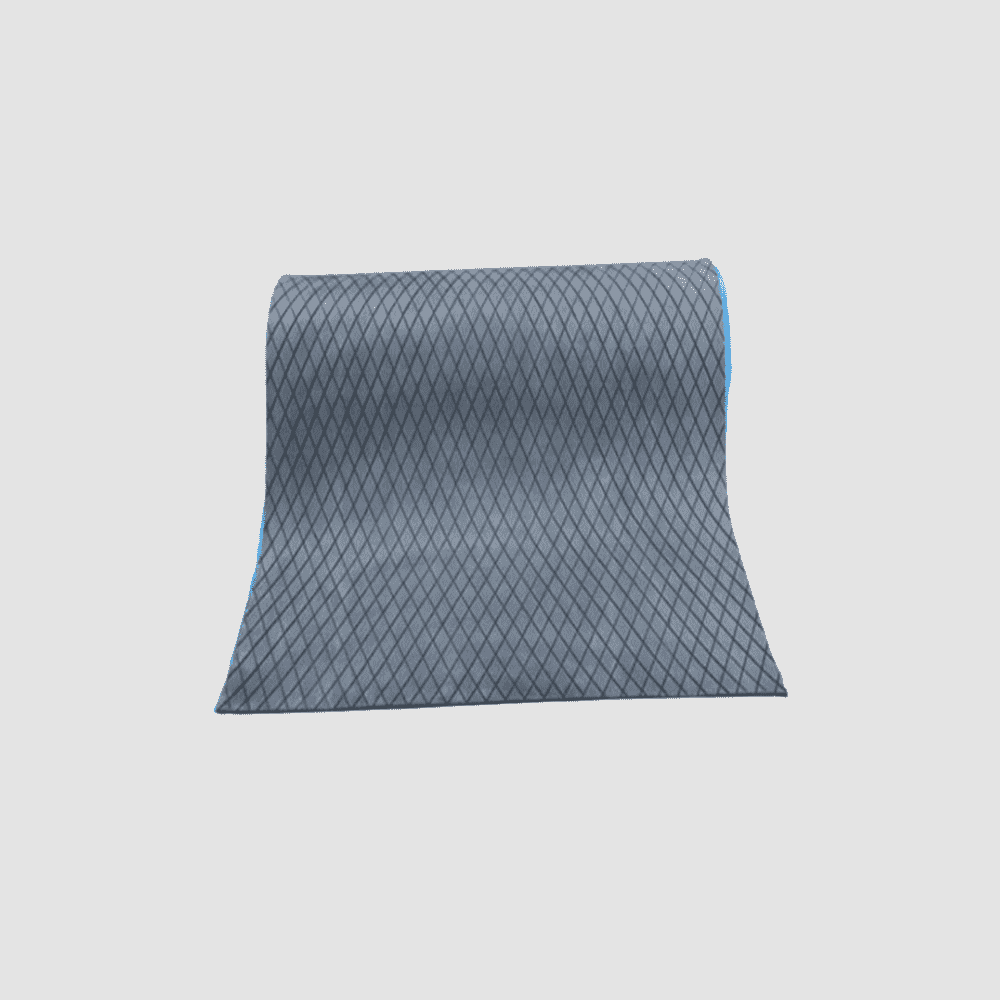

Diamond Sheet / Pulley Lagging Sheet
$1,450.00
Rubber is the most common type of pulley lagging as it is one of the most affordable conveyor component options. Rubber is a versatile material that varies in thickness, hardness and type of grooves. Pulley lagging is a layer of material bonded to the surface of a conveyor pulley. The pulley lagging is used to protect the conveyor pulley surface from damaging, increase the friction with the conveyor belt, extend the service life of the conveyor belt and conveyor pulley.
Description
Characteristics
No Reviews
Description
Available Colour:
- Black
Available Size :
- 4 Feet Witdh X 7feet Length X 12mm Thickness
Characteristics
Weight | 4.6 kg |
---|---|
Dimensions | 110 × 110 × 150 cm |
Size | (1mtr*2mtrsheet): |
PRICE RANGES FROM : | 350/- P.KG – 950/- P.KG |
Hardness(Shore A) | 40H(38-42), 50H(48-52), 60H(58-62), 70H(68-72), 80H(78-82) |
Appearance | Transparent |
Tensile(Mpa) | 9.5, 9 |
Elongation At Break | 400%, 500%, 600%, 700%, 800% |
Tear Strength (Die-c)(Kn/m) | 26, 35, 40 |
Rebound | 45%, 52%, 55% |
Reinforcement | Fiber mesh (Width up-to 1.5 mtr)Application as conveys belts etc., |
Compression set 22 hrs @ 175°C | 15, 16, 17, 18, 19 |
Working temperature range: | -40 to 250°C |
Vulcanization conditions: | 10 min. @ 170 ° C |
Post cured: | 2h @ 200 ° C in hot air |
