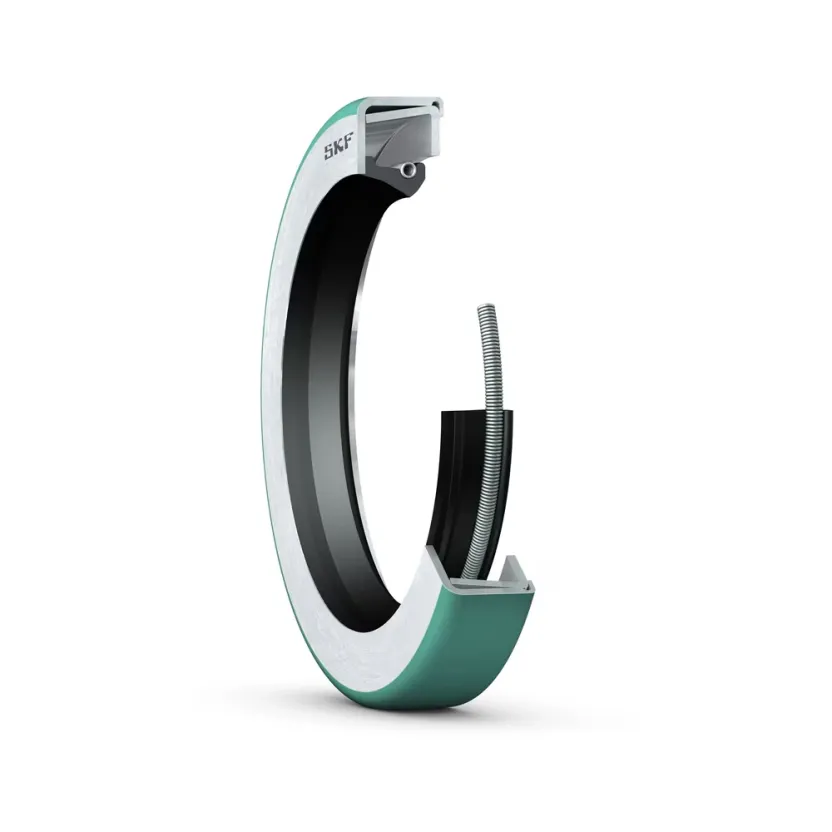

SKF CRW Series

The SKF CRW Series is a line of high-performance radial shaft seals with a metal outer casing, designed for superior durability and effective sealing under demanding operating conditions. With optimized lip geometry and an advanced elastomer-to-metal interface, these seals are widely used in industrial gearboxes, motors, and machinery where contamination control and lubricant retention are critical.

Technical Properties

SKF CRW Series seals feature a metal outer diameter (OD) and are coated with SKF Bore-Tite, a sealant layer that ensures tight seating even in slightly imperfect bores. The sealing lip is made from nitrile rubber (NBR) or fluoro rubber (FKM) depending on the application, supported by a stainless steel or carbon steel garter spring for consistent radial load.

Key technical highlights:

  • Lip Design: CRW seals use a standard or wave lip with optimized contact angle
  • Operating Range: Up to 100°C for NBR and 200°C for FKM versions
  • Speed Compatibility: Suitable for shaft speeds up to 14 m/s (varies with material and size)
  • Bore Fit: ISO and DIN standard compliant

Usage

The SKF CRW Series is ideal for sealing rotating shafts in:

  • Industrial gearboxes and reducers
  • Pumps and compressors
  • Motors and transmission systems
  • Construction and mining equipment
  • General heavy machinery

These seals perform well in environments with moderate to high contamination and are especially useful when metal-to-metal contact is needed for installation security.

Product Description

The SKF CRW Series is engineered with a press-fit metal casing and a precision-molded sealing lip that maintains contact with the shaft to prevent leakage and block contaminants. The metal OD allows for secure fitting in rigid housings, making it a preferred choice for mechanically demanding applications. A secondary dust lip can also be included for environments where particle ingress is a concern.
These seals are also compatible with SKF Speedi-Sleeves, allowing quick repair of worn shafts without replacing the entire component.

Characteristics

  • High Structural Integrity: All-metal casing resists deformation and enables firm bore fit.
  • Effective Lubricant Retention: Designed for both oil and grease applications.
  • Reliable Under Misalignment: Maintains seal under moderate shaft-to-bore misalignment.
  • Corrosion Resistance: Available with stainless steel springs and elastomers for harsh media.
  • Optional Auxiliary Lip: Added protection for dusty or contaminated environments.
  • Versatile Sizing: Available in a wide range of metric sizes for standard and custom applications.
